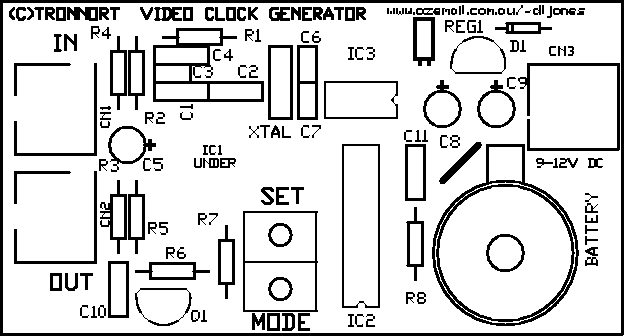

Parts List :

Video Overlay chip SO-28 package (Supplied in Short Form kit)

Programmed PIC16C61-04P (Supplied in Short Form kit)

PCB (Supplied in Short Form kit)

Dallas Semiconductor DS1307 DIP Package (Farnell 787-139)

78L05 TO-92 Package

32.768KHz Watch Crystal

17.734MHz XTAL HC-49 Package (14.318MHz for NTSC version)

2N3904 Transistor TO-92 Package (or equivalent)

1N4001 Diode

3 x 10uF 16V Electro

6mm PCB Push Button (Altronics S-1120, Jaycar SP-0730)

RCA Connector (Altronics P-0208 or equivalent)

2.1mm DC Power PCB Socket (Altronics P-0120 or equivalent)

Button Cell Holder( Altronics S-5056, Jaycar PH-9238)

Case 120x60x30mm (DSE H-2833, Jaycar HB-6030, Altronics H-0216)

3 x 0u1 CAP 0.2 PITCH

1 x 22nF CAP 0.2 PITCH

1 x 220pF CAP 0.1 PITCH

2 x 27pF CAP 0.1 PITCH

1 x 390pF CAP 0.2 PITCH

Resistors : 10K, 22K, 180R, 1K, 5K6, 2 x 75R

Lithium CR2016/2032 Battery
